Installing better bordkomputer in Compi

Post by kruiik on Thu Jul 29, 2010 12:27 am


I dont know just about anything about the topic, but would like to install consumption meter, engine check and outside temperature's to bordkomputer, but i pretty much lack the info how to continue.

Bordkomputers are on sale every now and then, but almost every time without wiring harness (= what is required anyway?) and i dont know where to get info about what features are on those (brake pad wear, windshield liquid warning etc)

Any ideas here?

kruiik

Posts : 11
Join date : 2010-06-24

View user profile

Back to top Go down

Re: Installing better bordkomputer in Compi

Post by $küll on Thu Jul 29, 2010 4:16 pm

you can install it easly, but to install all the features of the AC it is a big task.

first you have to distinguish the BC and the AC (auto check)

The BC shows you the consumption, running time, average speed etc....

the AC shows you faults and warnings.

Both are in the same box, but not all the BC have the AC with them, some have the MC (mini check)

the MC is what you have now in your car, 4 small signs...

To install the BC it is easy, because you just plug it in, connect the consumption signal (one wire), and everything works. yes, you need to install the control stick too, but it just plugs in.

i can provide the scematics...
avatar
$küll
Admin

Posts : 500
Join date : 2010-01-28
Age : 38
Location : Izola, Slovenia

View user profile http://audi80competition.forumotion.net

Back to top Go down

Re: Installing better bordkomputer in Compi

Post by kruiik on Thu Jul 29, 2010 4:54 pm

Please do, and better yet - part numbers as well Smile

kruiik

Posts : 11
Join date : 2010-06-24

View user profile

Back to top Go down

Re: Installing better bordkomputer in Compi

Post by $küll on Thu Jul 29, 2010 4:55 pm

first of all you should buy the BC, the stick, and the cables to connect the stick to the BC

then we will work on connecting it Smile

you dont need part numbers, everything fit from all audi 80, b3 and b4, s2, rs2...
avatar
$küll
Admin

Posts : 500
Join date : 2010-01-28
Age : 38
Location : Izola, Slovenia

View user profile http://audi80competition.forumotion.net

Back to top Go down

Re: Installing better bordkomputer in Compi

Post by kruiik on Fri Jul 30, 2010 12:39 am

I see BC's all the time on Ebay - but wire harnesses are rare (and seemingly expensive).

Have to keep on looking..

kruiik

Posts : 11
Join date : 2010-06-24

View user profile

Back to top Go down

Re: Installing better bordkomputer in Compi

Post by Imres on Mon Nov 22, 2010 11:32 pm

What number ECU pin is the consumption signal?
And then consumption signal goes to pin number 10 in board computer?

Imres

Posts : 2
Join date : 2010-11-22
Age : 34
Location : Estonia

View user profile

Back to top Go down

Re: Installing better bordkomputer in Compi

Post by $küll on Tue Nov 23, 2010 12:16 am

the consumption signal does not go to the ECU, but to a black connector under the steering wheel.

i will find a picture...
avatar
$küll
Admin

Posts : 500
Join date : 2010-01-28
Age : 38
Location : Izola, Slovenia

View user profile http://audi80competition.forumotion.net

Back to top Go down

Re: Installing better bordkomputer in Compi

Post by $küll on Tue Nov 23, 2010 12:20 am

this is the black connector, and you have only to find the yellow or yellow/green wire and connect it to the BC. if you have the wiring of the BC, you have the yellow wire there. just connect it, and everything works. all the other data needed is gathered from the instrument cluster.



avatar
$küll
Admin

Posts : 500
Join date : 2010-01-28
Age : 38
Location : Izola, Slovenia

View user profile http://audi80competition.forumotion.net

Back to top Go down

Re: Installing better bordkomputer in Compi

Post by dohc16v on Wed Nov 24, 2010 9:22 pm

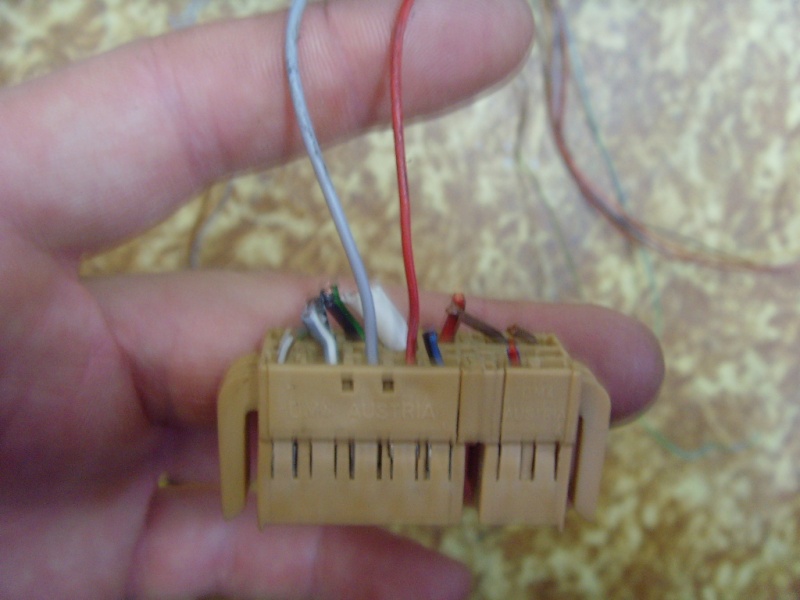

hi kruiik ,Lil wait abut AC I'm on weekend gonna connect orig AC wiring so it by lots of photos ,where to going 1 by 1 wiring some of wiring same connected as mini check and can by replug to new 26 pin plug and same of them new and on photo thous 6 wires ,2 of them conecting to yelow 26 pin plug to gete 2 more features tasol(coling likud)and petrol ,bud for now fiou photos .

[img]
avatar
dohc16v

Posts : 50
Join date : 2010-08-01
Age : 35
Location : Lithuania

View user profile

Back to top Go down

Re: Installing better bordkomputer in Compi

Post by kruiik on Thu Nov 25, 2010 7:25 pm

Thanks for pics, looks painful enough Wink

kruiik

Posts : 11
Join date : 2010-06-24

View user profile

Back to top Go down

Re: Installing better bordkomputer in Compi

Post by mle on Sat May 26, 2012 8:55 am

I just bought an S2 instrument cluster to my compi (got it very cheap). Circuit board has a small crack on it, but it easily fixable. My main concern now is that it has different connectors, yellow and blue are same, but then there's wide white connector, while my compi has smaller. I have absolutely now idea if this cluster has Autocheck or not, I haven't studied these so deeply that I could say it from the look. Anyway, I don't need AC at all, but of course normal warning lights would be nice. So, any idea if I can easily fit this cluster to my compi?

mle

Posts : 11
Join date : 2011-08-24
Location : Finland

View user profile

Back to top Go down

Re: Installing better bordkomputer in Compi

Post by $küll on Sun May 27, 2012 1:49 pm

as said, it is easy enough. your compi has a small white connector, because it doesent have all the autocheck functions. you only need to rewire the small connector to the large connector.

snap a pic of the BC, so we will see if it has the AC or the MC.
avatar
$küll
Admin

Posts : 500
Join date : 2010-01-28
Age : 38
Location : Izola, Slovenia

View user profile http://audi80competition.forumotion.net

Back to top Go down

Re: Installing better bordkomputer in Compi

Post by mle on Sun May 27, 2012 5:16 pm

Hi,

Ok, so I need to find some wiring diagrams. I also need to check the odometer, seller said that it might not work (someone has tried to turn it back to have less kilometers...). Anyway, here's a few pics of cluster.


mle

Posts : 11
Join date : 2011-08-24
Location : Finland

View user profile

Back to top Go down

Re: Installing better bordkomputer in Compi

Post by $küll on Sun May 27, 2012 6:28 pm

it has the AC
avatar
$küll
Admin

Posts : 500
Join date : 2010-01-28
Age : 38
Location : Izola, Slovenia

View user profile http://audi80competition.forumotion.net

Back to top Go down

Re: Installing better bordkomputer in Compi

Post by mle on Sun May 27, 2012 6:58 pm

Ok, thanks! So now I just need to find some wiring diagrams how to wire the small connector to bigger one.

Edit: Oh yes, and I really don't need any autocheck functions, normal warning lights are enough for me, but of course if I can easily some extra information out of it, that would be cool. But wiring the whole AC to work is no go for me, at least in this point.

mle

Posts : 11
Join date : 2011-08-24
Location : Finland

View user profile

Back to top Go down

Re: Installing better bordkomputer in Compi

Post by $küll on Mon May 28, 2012 2:24 pm

i have written to some forum member how to connect it to make it work, i cant remember in which topic it was...
avatar
$küll
Admin

Posts : 500
Join date : 2010-01-28
Age : 38
Location : Izola, Slovenia

View user profile http://audi80competition.forumotion.net

Back to top Go down

Re: Installing better bordkomputer in Compi

Post by $küll on Mon Jan 07, 2013 6:08 pm

you need to connect:

from pin -> to pin
3 -> 23
4 -> 17
7 -> 19

18 and 25 on ground

this is what you need to connect to have all the basic functions
avatar
$küll
Admin

Posts : 500
Join date : 2010-01-28
Age : 38
Location : Izola, Slovenia

View user profile http://audi80competition.forumotion.net

Back to top Go down
