Engine swap questions

Post by Jckssn on Thu Sep 06, 2012 7:52 pm

Im searching for some parts atm for my future engine swap but since my brother still uses the comp as a daily driver it is some things that i cant look for myself on the car.
So a couple of questions.

How is the ACE-engine mounted to the car? In earlier 80's (b1/b2) i know for a fact that the engine sat in the subframe, is it the same in the b4 competition? (or is it like in all the 5cylinder cars mounted in the chassis?)

Is there any differences on the gearbox mountings on an 4cyl/5cyl subframe?


Well, thats about all... Hope someone got a clue, tried e**a but i didnt get any smarter there Very Happy

Jckssn

Posts : 7
Join date : 2012-06-15

View user profile

Back to top Go down

Re: Engine swap questions

Post by kiil on Fri Sep 07, 2012 1:45 pm

All B4 engines are attached to chassis and V6 have different mounts.


kiil

Posts : 11
Join date : 2010-04-02
Location : Saaremaa

View user profile

Back to top Go down

Re: Engine swap questions

Post by claudiu05 on Fri Mar 08, 2013 1:23 am

Hello. Can you please tell me what extra parts do i need for a 1.8t swap AEB from a Audi A4 B5 to my compy?

claudiu05

Posts : 4
Join date : 2012-11-13
Age : 25
Location : Romania

View user profile

Back to top Go down

Re: Engine swap questions

Post by slimshady on Fri Mar 08, 2013 5:41 pm

claudiu05 wrote:Hello. Can you please tell me what extra parts do i need for a 1.8t swap AEB from a Audi A4 B5 to my compy?
it is better to have all donor car for AEB swap. less problems with extra parts Wink

slimshady

Posts : 102
Join date : 2011-08-20
Age : 35
Location : Lithuania Sun City

View user profile

Back to top Go down

Re: Engine swap questions

Post by mle on Thu May 09, 2013 10:27 am

claudiu05 wrote:Hello. Can you please tell me what extra parts do i need for a 1.8t swap AEB from a Audi A4 B5 to my compy?

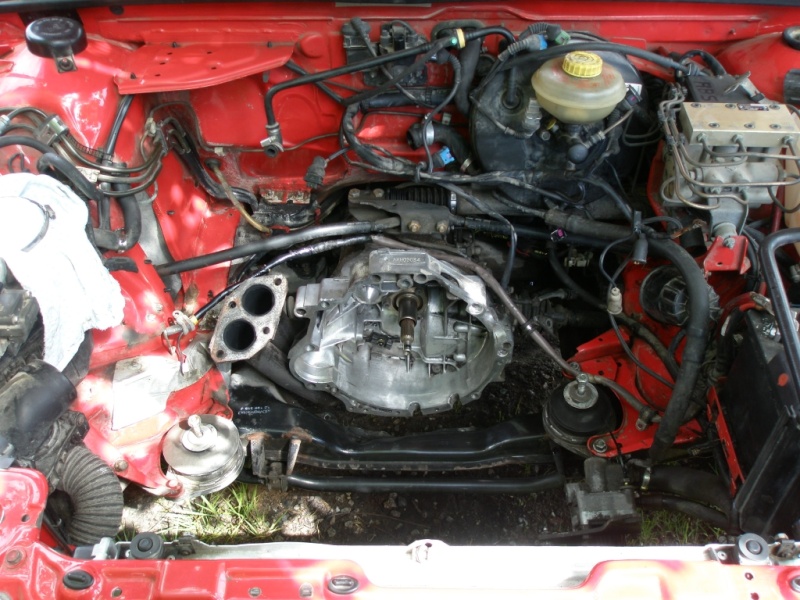

All you need is right side engine mount from cabriolet (part nbr 8A0199308J) and front support from aeb. Some of the coolant hoses needs to be modified and/or taken from b5. Quite plug&play overall. Here's few pics


Last edited by mle on Thu May 16, 2013 9:14 am; edited 2 times in total (Reason for editing : url)

mle

Posts : 11
Join date : 2011-08-24
Location : Finland

View user profile

Back to top Go down

Re: Engine swap questions

Post by claudiu05 on Wed Jun 19, 2013 1:59 pm

Hello. Today I founded a Audi S6 whit a 2.2Turbo engine 6 speed -gearsbox, can i make the swap from the 2.0 to 2.2 turbo ? Do i need to make major adjustments? TNX

claudiu05

Posts : 4
Join date : 2012-11-13
Age : 25
Location : Romania

View user profile

Back to top Go down

Re: Engine swap questions

Post by ManiacuV6 on Sat Nov 02, 2013 1:18 am

Claudiu 05 If you really want  to go 1.8t or 2.2T  I can help you with alot of infos.
 I will go the 2.2T way but is not a easy job. I have alot of patience Very Happy
 I put 1.8T AEB on B3  80  like 7 years ago


What do you want to say with "major adjustments" ?

ManiacuV6

Posts : 9
Join date : 2013-01-13

View user profile
